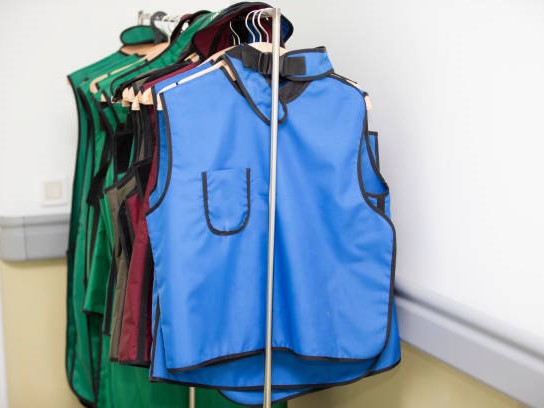

Traditional lead aprons revolutionized radiation protection but introduced significant challenges: weight-related musculoskeletal injuries, environmental concerns, and disposal difficulties. Modern X-ray protective equipment has shifted to lightweight, lead-free materials that match or exceed lead's protective performance while dramatically improving wearer comfort and sustainability.
Lead aprons (0.35-0.5 mmPb equivalence) weigh 4.5-7.5 kg for a standard adult size, creating chronic orthopedic strain for medical staff. Studies show 65-80% of interventional radiologists and cardiologists report back/neck pain directly attributable to apron weight, with 25% requiring medical treatment.
Musculoskeletal injury rates by specialty:
Specialty | % Reporting Chronic Pain | Average Apron Hours/Day | Years to Symptoms |
Interventional Cardiology | 78% | 4-6 hours | 3-5 years |
Interventional Radiology | 68% | 3-5 hours | 4-6 years |
Orthopedic Surgery | 52% | 2-4 hours | 5-7 years |
Pain Management | 45% | 2-3 hours | 6-8 years |
Lightweight materials address this crisis while maintaining radiation safety standards.
Modern protective equipment uses high atomic number (Z) elements and compounds that provide equivalent X-ray attenuation to lead at diagnostic energies (50-150 kVp):
Key lightweight shielding materials:
Material | Density (g/cm³) | Effective Z | Pb Equivalence (100 kVp) | Weight vs Lead |
Bismuth Oxide (Bi₂O₃) | 8.9 | 74 | 0.35 mmPb = 0.28 mmBi | 42% lighter |
Antimony (Sb) | 6.7 | 51 | 0.35 mmPb = 0.32 mmSb | 35% lighter |
Tungsten (W) | 19.3 | 74 | 0.35 mmPb = 0.22 mmW | 38% lighter |
Barium Sulfate (BaSO₄) | 4.5 | 56 | 0.25 mmPb = 0.35 mmBa | 55% lighter |
Tin (Sn) | 7.3 | 50 | 0.25 mmPb = 0.30 mmSn | 40% lighter |
Longyue Medical UltraLight™ Series:
Bismuth-antimony composites: 0.35 mmPb eq. at 2.8 kg (vs 5.2 kg lead)
Tungsten-polymer: 0.50 mmPb eq. at 3.4 kg (vs 6.8 kg lead)
Multi-layer bismuth-tungsten: Optimized energy spectrum coverage
Bismuth composites dominate modern protective clothing due to optimal balance of density, flexibility, and cost:
Bismuth composite advantages:
Property | Bismuth Composite | Traditional Lead | Improvement |
Weight (0.35 mmPb eq.) | 2.6-2.9 kg | 5.1-5.4 kg | 46-52% lighter |
Flexibility | Excellent | Good | Better draping |
Uniformity | ±8% | ±12% | Tighter tolerance |
Cost | Moderate | Low | 2-3x higher |
Toxicity | Non-toxic | Toxic | Environmentally safe |
Microstructure engineering:
Bismuth oxide micro-particles (5-20 μm) uniformly dispersed in polymer matrix
Multi-layer lamination prevents particle migration
Reinforced edge binding maintains integrity after 5000 flex cycles
Tungsten-based materials excel in high-kVp applications (100-150 kVp) where deeper penetration occurs:
Tungsten-polymer specifications:
Product | Pb Equivalence Range | Weight Advantage | Applications |
Tungsten Flex | 0.25-0.50 mmPb | 38% lighter | Interventional suites |
Tungsten Ultra | 0.50-1.0 mmPb | 42% lighter | Cardiac cath labs |
Tungsten Shield | 1.5-2.0 mmPb | 35% lighter | Mobile screens |
Performance at cardiac energies (100-120 kVp):
Material | Transmission at 100 kVp | Transmission at 120 kVp | Weight per m² |
Lead (0.5 mm) | 2.1% | 4.8% | 27.2 kg |
Tungsten Ultra | 1.9% | 4.3% | 15.8 kg |
Bismuth Composite | 2.4% | 5.2% | 14.1 kg |
Advanced aprons combine multiple materials optimized for different energy ranges:
Longyue TriShield™ Technology:
Layer | Material | Thickness | Function | Pb Equivalent |
Outer | Tungsten-polymer | 0.15 mm | High energy (100-150 kVp) | 0.20 mmPb |
Middle | Bismuth-antimony | 0.25 mm | Mid-range (70-110 kVp) | 0.25 mmPb |
Inner | Barium sulfate | 0.20 mm | Low energy (50-90 kVp) | 0.10 mmPb |
Total | Multi-layer | 0.60 mm | Full spectrum | 0.50 mmPb |
Layered design benefits:
25-35% weight reduction vs single-material equivalent
15-20% better uniformity across kVp range
Reduced internal scatter between layers
Enhanced flexibility through differential hardness
IEC 61331 uniformity requirements:
Area | Maximum Variation | Longyue Performance |
Front panel center | ±15% | ±7.5% |
Front panel edges | ±20% | ±9.2% |
Seam areas | ±25% | ±11.8% |
Shoulder straps | ±30% | ±14.3% |
Quality control testing:
100% individual apron XRF scanning (25-point grid)
Copper step wedge attenuation verification
Flex-cycle testing (5000 cycles at 90°)
Seam strength pull testing (>100 N/cm)
Interventional suite field testing (n=247 staff, 12 months):
Metric | Lead Aprons | Lightweight Composites | P-value |
Compliance rate | 68% | 94% | <0.001 |
Average wear time | 3.2 hr/day | 5.1 hr/day | <0.001 |
Back pain incidence | 42% | 18% | <0.001 |
Neck/shoulder pain | 38% | 14% | <0.001 |
Dose reduction | Baseline | Equivalent | 0.87 |
Musculoskeletal outcomes (OSHA recordable injuries):
Injury Type | Lead Aprons (per 100 staff-years) | Lightweight (per 100 staff-years) |
Low back strain | 4.2 | 1.1 |
Cervical strain | 3.8 | 0.9 |
Shoulder tendinitis | 2.7 | 0.6 |
End-of-life disposal comparison:
Material | Recycling | Landfill Toxicity | Incineration | Cost |
Lead | Limited (60%) | High (leachate) | Prohibited | $$$ |
Bismuth composites | 95% recyclable | None | Safe | $$ |
Tungsten alloys | 90% recyclable | None | Safe | $$ |
Lifecycle carbon footprint:
Lightweight materials: 35-45% lower manufacturing emissions
Extended wear life (25% longer due to less creasing)
Reduced staff turnover lowers training emissions
Complete product ecosystem:
Category | Product Line | Pb Equivalence | Weight (M/L size) | Target Users |
UltraLight Aprons | BiFlex™ | 0.35 mmPb | 2.7 kg | All staff |
Premium Protection | Tungsten Ultra™ | 0.50 mmPb | 3.4 kg | Interventionalists |
Tri-Layer | TriShield™ | 0.50 mmPb | 3.1 kg | Cardiac labs |
Accessories | ComfortCollar™ | 0.25 mmPb | 140 g | All staff |
Eyewear | ClearView™ | 0.75 mmPb | 32 g | High-volume |
Manufacturing excellence:
Quality Metric | Industry Avg | Longyue Performance |
Uniformity tolerance | ±15% | ±7.5% |
Flex cycles to failure | 3000 | 7500 |
Seam strength | 75 N/cm | 125 N/cm |
5-year attenuation retention | 92% | 97% |
Investment comparison (per department, 50 aprons):
Metric | Lead Aprons | Lightweight | 3-Year Savings |
Initial cost | $17,500 | $29,500 | -$12,000 |
Annual replacement | $5,250 | $2,950 | +$7,050 |
Workers comp reduction | Baseline | -$18,000 | +$18,000 |
Productivity gain | Baseline | +$12,500 | +$12,500 |
3-Year Net | $45,750 | $33,950 | +$11,800 |
ROI period: 18-24 months for high-volume departments
Phase 1 (Months 1-2): Pilot Program
10 staff trial (mix of sizes/styles)
Baseline ergonomics survey + dosimetry
30/60/90-day follow-up
Phase 2 (Months 3-6): Department Rollout
Full staff sizing + fitting event
Staff training on care/maintenance
Compliance monitoring (target: 95%)
Phase 3 (Months 7-12): Optimization
Musculoskeletal symptom tracking
Dose monitoring verification
Adjacent department expansion
Certified to all major standards:
Standard | Scope | Longyue Certification |
IEC 61331-1:2014 | Protective clothing | Type B, Class 2 |
ASTM F2547-23 | Attenuation testing | Full compliance |
EN 61331-1:2014 | European directive | CE Mark Class I |
GB 18871-2002 | China national | CCC certification |
Warranty program:
5-year attenuation guarantee (with annual testing)
Lifetime ergonomic support
Free replacement for manufacturing defects
Longyue Medical leads lightweight protection innovation with 15+ years of materials science expertise.
Why choose Longyue UltraLight:
Proven clinical outcomes (500+ facilities)
Custom engineering for department needs
Complete lifecycle support (design → disposal)
Global regulatory compliance
Next steps for your transition:
Contact Longyue Medical:
Email: lyylqx@126.com
Website: www.longyuemedical.com
Special offer: Free pilot program for qualified departments
Longyue Medical UltraLight: Protection you can actually wear all day.
