CT, digital radiography (DR), and fluoroscopy rooms all use X-rays, but their workload and exposure patterns are very different. To keep patients, staff, and the public safe, each room needs a tailored radiation protection design that combines proper structural shielding with suitable protective equipment and good workflow practices.
The starting point for radiation protection design is to understand how each room will actually be used. Key factors include typical kV and mAs, number of examinations per week, fluoroscopy time, and the types of procedures performed. High-workload rooms such as CT and interventional fluoroscopy suites usually require more robust shielding than a low-volume DR room.
It is also essential to identify which walls, floor, and ceiling surfaces are "primary" (direct beam can hit them) and which are "secondary" (exposed only to scattered or leakage radiation). Adjacent areas must be classified by occupancy—for example, full-time offices versus storage rooms—so that dose limits for each type of space can be respected.

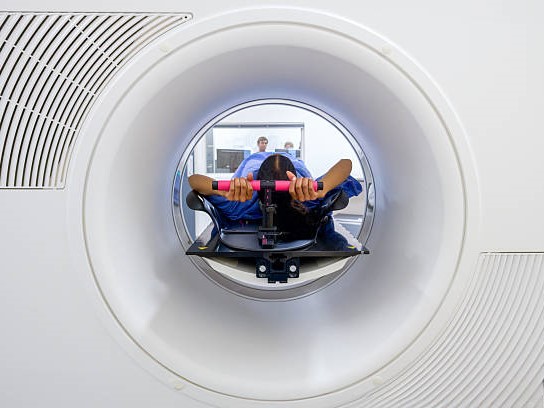

CT scanners typically deliver a relatively uniform distribution of X-rays around the gantry, and the cumulative weekly workload can be very high. As a result, CT rooms require careful evaluation of wall and control room shielding. In most designs, the control room is located behind a shielded barrier with a lead glass observation window that allows the technologist to see and communicate with the patient.
Walls and doors should provide sufficient lead equivalence to keep dose in adjacent occupied areas below regulatory limits, taking into account the scanner's output, room layout, and occupancy. The control console should be positioned so that the operator is always behind the barrier during scanning. Where there are occupied spaces above or below the CT room, floor and ceiling shielding may also need to be considered.
Longyue Medical can supply lead glass windows and shielded door components that integrate with the CT room's structural shielding design, helping to maintain continuity of protection around the entire enclosure.
In DR rooms, radiation is usually produced in short exposures with relatively low total workload compared with CT, but primary beams may be directed toward multiple walls depending on how the system is used. The most critical barrier is often the wall behind the upright chest stand or any fixed primary beam direction, which typically requires higher lead equivalence.
The remaining walls, door, and control barrier are usually treated as secondary barriers, designed mainly for scatter and leakage radiation from the X-ray tube. The operator should be able to stand behind a shielded console or fixed protective screen during exposure, with clear line of sight or a lead glass window to monitor the patient. In multi-room or corridor layouts, attention must be paid to shielding between the DR room and adjacent areas such as waiting rooms, offices, and staff areas.
Longyue Medical's lead glass, protective panels, and shielded doors can be combined to create a robust DR control area, and mobile lead screens can be added where flexible local protection is needed.
Fluoroscopy rooms—including those used for GI studies, pain procedures, and basic interventional work—require more stringent protection because of longer exposure times and variable C-arm or tower angulation. Structural shielding must be designed for the expected fluoroscopy workload, with primary and secondary barriers sized and placed according to typical beam directions.
In addition to fixed barriers, local shielding close to the patient is critical. Ceiling-suspended lead acrylic shields placed between the patient and operator's upper body can significantly reduce head and eye dose, while under-table and table-side lead curtains help protect the lower body. These local shields are most effective when they are brought close to the patient and used consistently for every procedure.
Longyue Medical offers X-ray protective lead screens and curtains that can be integrated with fluoroscopy tables and C-arm systems, creating an efficient combination of structural and movable shielding around the procedure area.
Even with well-designed rooms, staff must wear personal protective equipment whenever they are present during exposure. For CT and DR, technologists usually work behind protective barriers, but protective aprons are still useful for situations where they must stay in the room, such as positioning patients who cannot cooperate.
In fluoroscopy rooms, interventional staff, nurses, and anesthesiologists typically need:
Lead or lead-equivalent aprons, often 0.35–0.5 mmPb in the front.
Thyroid collars to protect the neck region.
Lead glasses to reduce lens dose, especially for staff standing close to the X-ray beam.
Optional caps or gloves for specific high-exposure tasks.
Longyue Medical provides a full range of protective aprons, thyroid collars, caps, glasses, gloves, and patient shields, including lightweight and lead-free options to reduce fatigue during long procedures. All products are manufactured and tested in accordance with applicable X-ray protection standards to ensure the declared lead equivalence.
Radiation protection is only effective if it is actively used in daily practice. For CT, DR, and fluoroscopy rooms, this means:
Establishing clear operating procedures that define where staff should stand, when barriers must be used, and which PPE is required.
Training technologists and physicians on dose-saving techniques such as tight collimation, appropriate exposure parameters, and minimal fluoroscopy time.
Ensuring that mobile shields, curtains, and ceiling-suspended screens are easily accessible and positioned before exposure begins.
Monitoring staff doses with personal dosimeters and reviewing results periodically to identify areas for improvement.
Longyue Medical can support this process by helping facilities match the right shielding products and PPE to each room type, and by providing consistent, high-quality equipment that staff find practical to use.
Radiation protection is not a one-time project; rooms and protective devices require periodic checks. Structural shielding should be verified at commissioning and may be re-evaluated when workload, equipment, or room use changes. Protective aprons, curtains, and mobile shields should be inspected regularly for damage, with defective items repaired or replaced promptly.
As technology evolves—for example, with newer low-dose fluoroscopy systems or advanced DR detectors—protocols and protection setups can be updated to take advantage of dose-reduction capabilities. Longyue's product line includes both traditional lead and modern lightweight materials, making it easier to upgrade PPE and local shielding as clinical needs change.
By following these steps and combining sound shielding design with reliable Longyue Medical protective products, hospitals can create CT, DR, and fluoroscopy rooms that deliver excellent image quality while maintaining a high level of safety for patients, staff, and the public.
