How Lead Glass Is Made for X-Ray Observation Windows

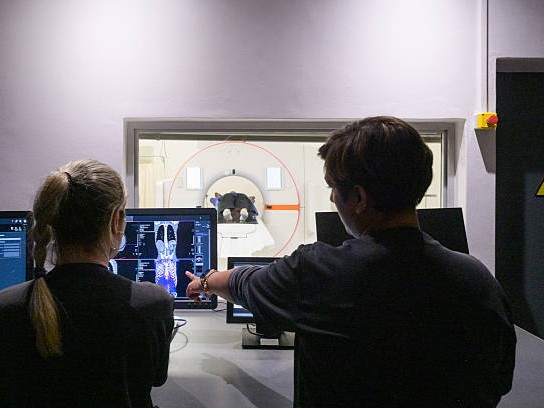

Lead glass observation windows are essential safety components in radiology suites, providing clear visibility while blocking diagnostic X-rays equivalent to surrounding lead walls. These specialized windows must achieve 1.8-2.1 mmPb equivalence at 100 kVp while maintaining 88-92% visible light transmission through precise chemistry, high-temperature processing, and advanced manufacturing techniques.

Manufacturing medical-grade lead glass requires balancing optical clarity, radiation shielding, mechanical strength, and chemical durability under continuous clinical use.

Why Lead Glass Performance Is Mission-Critical

Observation windows create the protected interface between radiation zones and control areas. A single poorly performing window compromises entire room shielding designs:

Performance requirements for medical applications:

Failure in any parameter creates safety gaps or workflow problems.

Raw Material Formulation: Precision Chemistry

Optimized batch composition for 2.0 mmPb equivalence (15 mm thick):

• Silicon dioxide (SiO₂): 52% - primary glass network former

• Lead oxide (PbO): 30% - radiation absorption (high atomic number Z=82)

• Potassium oxide (K₂O): 10% - flux (lowers melting point)

• Sodium oxide (Na₂O): 6% - secondary flux

• Aluminum oxide (Al₂O₃): 1.5% - chemical durability

• Cerium oxide (CeO₂): 0.5% - radiation darkening prevention

PbO content directly determines shielding:

Longyue Medical specifies 30% PbO formulation (4.4 g/cm³) yielding exactly 2.0 mmPb in 15 mm thickness.

High-Temperature Melting Process (32-hour cycle)

Phase 1: Batch melting (1,450°C, 6 hours)

• Platinum-lined electric furnaces prevent contamination

• Gradual silica dissolution prevents thermal shock/cracking

• Initial PbO dissolution monitored by viscosity control

Phase 2: Refining and homogenization (1,400°C, 16 hours)

• Arsenic oxide/sodium sulfate remove gas bubbles

• Mechanical stirring achieves ±2% PbO uniformity

• Temperature cycling controls crystallization risk

Phase 3: Conditioning for forming (1,250°C, 10 hours)

• Final optical homogenization

• Continuous viscosity monitoring

• Ready for precision molding

Critical chemistry reactions:

• SiO₂ + PbO → lead silicate matrix (amorphous radiation absorber)

• K₂O + SiO₂ → lowers melting point from 1,700°C to 1,450°C

• CeO⁴⁺ → traps electrons, prevents radiation-induced coloration

Precision Forming Technologies

Press molding (medical window standard):

• Platinum alloy molds heated to 1,200°C

• 50-100 kg glass charge poured into mold

• Hydraulic press applies 200-500 tons force

• Controlled mold cooling prevents stress

Result: Exact 15.0 ± 0.3 mm thickness, perfect rectangular geometry for frame integration.

Float process (large sheets):

Continuous ribbon formation on molten tin bath produces unlimited size sheets (±1% thickness uniformity), then cut to medical dimensions.

Critical Annealing: Stress Elimination (96 hours)

Rapid cooling creates internal stresses that cause warping under radiation load:

Four-stage annealing cycle:

• 550°C (24 hours): Relieve molding stresses

• 480°C (48 hours): Annealing point - eliminate birefringence

• 420°C (24 hours): Strain point - stabilize structure

• 25°C (gradient controlled): Final stabilization

Outcome: Zero internal stress, permanent flatness under thermal/radiation load.

Optical Finishing and Quality Control

Post-annealing precision processing:

• CNC grinding to ±0.2 mm flatness over 1 square meter

• Diamond polishing to 40/20 scratch-dig surface

• Edge seaming/beveling for safety and frame fit

• Anti-reflective coating option (+4% light transmission)

100% optical testing:

Radiation Shielding Verification (Factory Mandatory)

Nine-point lead equivalence grid testing:
Setup: 100 kVp narrow beam, ionization chamber, 20 cm PMMA backscatter phantom

Certified performance (typical 15 mm window):

Individual window certification: Laser-etched serial, measured Pb equivalence, manufacture date.

Complete Window System Engineering

Integrated assembly components:

• Lead glass pane (primary barrier)

• Extruded lead frame (2.5 mmPb continuous)

• Rubber gasket with lead infill (eliminates edge leaks)

• Aluminum pressure frame (structural)

• Mounting brackets (vibration isolation)

Critical feature: 75 mm lead frame overlap beyond glass edges prevents radiation streaming.

Installation and Field Verification

Longyue Medical installation protocol:

• Ultrasonic thickness verification (10 points)

• Fluoroscopy integrity scan (full area)

• Frame-to-wall shielding continuity test

• Visual/optical quality inspection

• Documentation package handover

15-year performance warranty includes annual inspection support.

Lifecycle Performance Under Clinical Conditions

Expected degradation rates:

Service life: 20-25 years typical radiology suite use.

Cost vs. Performance Optimization

100×120 cm observation window economics:

Longyue Medical Medical Window Solutions

Stock configurations:

Manufacturing excellence:

• Dedicated medical production line

• 100% individual testing/certification

• Global standards compliance (IEC, NCRP, GB)

• 15-year attenuation warranty

Partnering with Longyue Medical

Complete radiation room window solution:

• Free shielding calculation service

• Custom engineering + manufacturing

• Factory testing + certification

• Professional installation coordination

• Lifetime technical support
